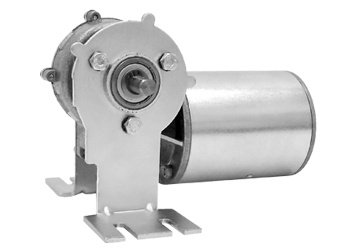

MRJ 210 - ISVRLB - (RPM) - (V)

  • Motoredutor de corrente contínua
  • 2 polos
  • Ímãs permanentes
  • 12 ou 24 Vcc (outras tensões sob consulta)
  • Sem ventilação
  • Proteção IP 40
  • Isolação classe H (180 °C)
  • Temperatura ambiente máxima 50 °C
  • Porta escovas interno
  • Mancais do motor com rolamentos
  • Carcaça do redutor em alumínio
  • Mancais do redutor com rolamentos
  • Engrenagem em Celeron (Opcional em bronze até 60 RPM)
  • Lubrificação permanente com graxa
  • Fixação com base
  • Fator de serviço S1
  • Carga máxima radial 10 kg
  • Carga máxima axial 2,5 kg
  • Massa 2,1 kg

Tabela 12Vcc

Modelo Armadura Potência Rend. Bloqueado Dados Técnicos
Tensão Sem Carga Com Carga Entrega Consumo
Volts RPM A RPM A Kgfcm W W % Kgfcm (*) A (*)
MRJ 210-ISVRLB-15-12V1218,000,6011,802,2062,707,4026,4028,00190,006,20Downloads PDF
MRJ 210-ISVRLB-25-12V1230,001,0023,103,2067,5015,6038,4040,60230,0010,10Downloads PDF
MRJ 210-ISVRLB-45-12V1248,800,8046,004,0060,9028,0048,0058,30230,0028,50Downloads PDF
MRJ 210-ISVRLB-60-12V1264,501,6058,905,4054,7032,2064,8049,70230,0027,30Downloads PDF
MRJ 210-ISVRLB-90-12V1294,502,0085,707,3048,4041,5087,6047,30230,0039,40Downloads PDF
MRJ 210-ISVRLB-120-12V12147,002,60131,709,4042,1055,50112,8049,20230,0058,70Downloads PDF
MRJ 210-ISVRLB-160-12V12173,803,00168,205,0018,9031,8060,0053,00230,0073,70Downloads PDF
MRJ 210-ISVRLB-240-12V12287,003,20260,0010,9024,2063,00130,8048,20207,0085,40Downloads PDF
MRJ 210-ISVRLB-300-12V12310,001,70280,0010,0023,2065,00120,0054,10228,0080,00Downloads PDF
MRJ 210-ISVRLB-350-12V12385,001,90302,0012,0027,4082,60144,0057,30153,2067,40Downloads PDF
MRJ 210-ISVRLB-450-12V12490,001,80406,0011,0019,8080,20132,0060,70135,0091,50Downloads PDF
MRJ 210-ISVRLB-550-12V12545,001,80489,0011,2015,0073,30134,4054,50188,0081,60Downloads PDF

Tabela 24Vcc

Modelo Armadura Potência Rend. Bloqueado Dados Técnicos
Tensão Sem Carga Com Carga Entrega Consumo
Volts RPM A RPM A Kgfcm W W % Kgfcm (*) A (*)
MRJ 210-ISVRLB-15-24V2418,000,3012,501,1062,407,8026,4029,50190,003,20Downloads PDF
MRJ 210-ISVRLB-25-24V2429,000,5023,801,5059,7014,2036,0039,40230,005,80Downloads PDF
MRJ 210-ISVRLB-45-24V2452,000,3046,302,0061,1028,3048,0058,90230,0014,20Downloads PDF
MRJ 210-ISVRLB-60-24V2470,000,8062,903,5058,3036,7084,0043,60230,0021,80Downloads PDF
MRJ 210-ISVRLB-90-24V2498,000,6091,004,0048,1043,8096,0045,60230,0019,70Downloads PDF
MRJ 210-ISVRLB-120-24V24130,000,70119,005,0042,5050,60120,0042,20230,0041,70Downloads PDF
MRJ 210-ISVRLB-160-24V24172,400,90167,502,8021,2035,5067,2052,80230,0029,50Downloads PDF
MRJ 210-ISVRLB-240-24V24243,000,75227,006,0024,0054,50144,0037,80230,0052,10Downloads PDF
MRJ 210-ISVRLB-300-24V24310,000,80275,005,0024,1066,40120,0055,30230,0045,90Downloads PDF
MRJ 210-ISVRLB-350-24V24385,000,80356,005,5021,9078,10132,0059,10230,0062,60Downloads PDF
MRJ 210-ISVRLB-450-24V24467,000,80406,505,5019,7080,20132,0060,70135,0045,70Downloads PDF
MRJ 210-ISVRLB-550-24V24619,001,00492,005,5013,1064,40132,0048,7085,0035,60Downloads PDF

(*) Os motoredutores suportam os torques e as correntes máximas por 15 segundos, sob risco de danos permanentes.

Especificações sujeitas a alterações sem prévio aviso.
